8 to 12 GPH SYSTEM

OUR MOST POPULAR SMALL SYSTEM

Includes:

Stainless Steel 3-way valve at seawater in from sea strainer

Booster pump

5-micron pre-filter housing, element, and wrench,

Italian made high-pressure pump with 1/2 HP AC or DC motor (rated 39 amps at 12 volts, 20 amps at 24 volts)

6 feet high-pressure line

(1) 21″ Dow RO membrane and high-pressure housing,

0 to 30 GPH flow meter

3-way product water valve

Stainless Steel liquid-filled 0 to 1500 PSI gauge with Stainless Steel needle/pressure control valve

3-way brine valve

(20) feet 1/4″ clear food grade tubing

(10) feet 1/2″ braided vinyl suction tubing,

Installation, maintenance, and operation manual

Pickling chemicals

All required high and low-pressure fittings

A COMPLETE SYSTEM.

This system can run off a Honda 2000i Inverter Generator.

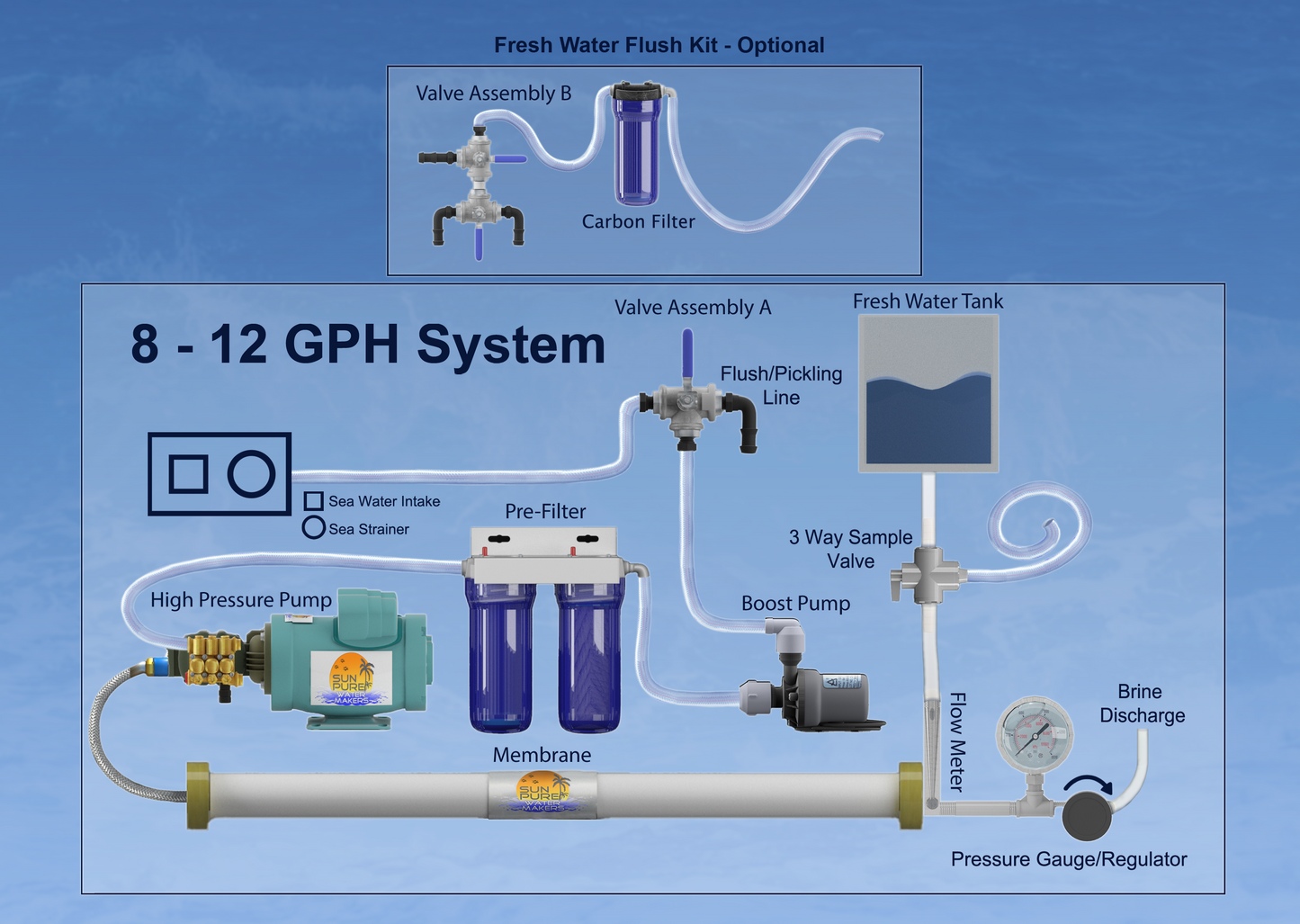

The components are labeled and numbered with a system diagram showing how it is all connected. Starting with #1 Sea water into #2 boost pump to #3 pre-filter, very easy to follow instructions and if a question comes up you can always email or call for assistance.

You will need to supply through-hulls, sea strainer, hose clamps, and wiring for pump motors.
