30 GPH ENGINE DRIVEN SYSTEM

Includes:

Stainless steel 3-way valve at sea strainer

10 feet webbed suction tubing

Boost pump

Clear pre-filter housing with mounting bracket, wrench, and 5 micron filter element

Commercial high pressure pump with 12-volt clutch

(6) feet 3000 PSI Stainless Steel high pressure line

(1) 2.5″ diameter by 40″ Dow Filmtec R.O. membrane and Pressure Vessel with padded mounting brackets

0 to 60 GPH flow meter

3-way product water valve

Stainless Steel liquid filled high pressure gauge (0 to 1500 PSI)

Stainless Steel needle/pressure control valve

3-way brine/pickle valve

(20) feet 3/8″ food grade tubing

Installation, maintenance, and operation manual, pickling chemicals, and all required high and low pressure fittings

A COMPLETE SYSTEM.

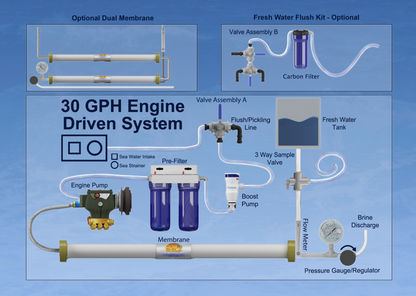

The components are all labeled and numbered with a system diagram showing how all are connected. Starting with #1 Stainless Steel 3-way sea water valve into #2 boost pump, to #3 pre-filter; very easy to follow instructions and if a question comes up you can email or call for assistance.

You will need to supply thru-hulls, sea strainer,  hose clamps, belts and wiring for pumps. You will need to fabricate a mounting plate on engine or hull to mount the pump.
