18 to 25 GPH SYSTEM

18 to 25 GPH SYSTEM

Regular price $2,975.00
Regular price Sale price $2,975.00
Sale Sold out
Shipping calculated at checkout.
Motor Type
Boost Pump Type
Optional Second Membrane (same motor/energy usage but almost doubles output and provides redundancy!)



Stainless Steel 3-way valve at sea strainer

(10) feet braided suction tubing

Boost pump

Clear pre-filter housing with mounting bracket, wrench and 5-micron filter element

Soft start 1 HP AC motor (115v or 230v) with high-pressure pump

(6) feet 3000 PSI SS high-pressure line

(1) 2.5″ X  40″ Dow R O membrane and high-pressure vessel with padded mounting brackets

0 to 30 GPH flow meter

3-way product water valve

Stainless Steel liquid-filled high-pressure gauge (0 to 1500 PSI)

Stainless Steel needle/pressure control valve

3-way brine/pickle valve

(20) feet 3/8″ food grade tubing

Installation, maintenance, and operation manual

Pickling chemicals

All required high and low-pressure fittings


Optional Second Membrane allows for almost double the production (also includes a 0 - 60 GPH Flow Meter)

Optional AC Boost Pump

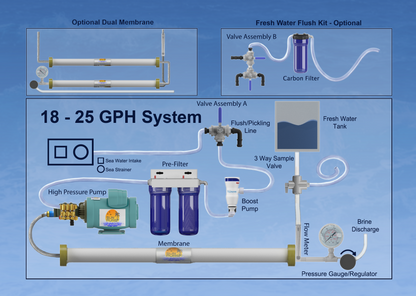

The components are all labeled and numbered with a system diagram showing how all are connected. Starting with #1 Stainless Steel 3-way sea water valve in connecting to #2 boost pump, to #3 pre-filter; very easy to follow instructions and if a question comes up you can email or call for assistance.

You will need to supply thru-hulls, sea strainer, hose clamps, and wiring for pumps

Add an optional Fresh Water Flush Kit to your cart
