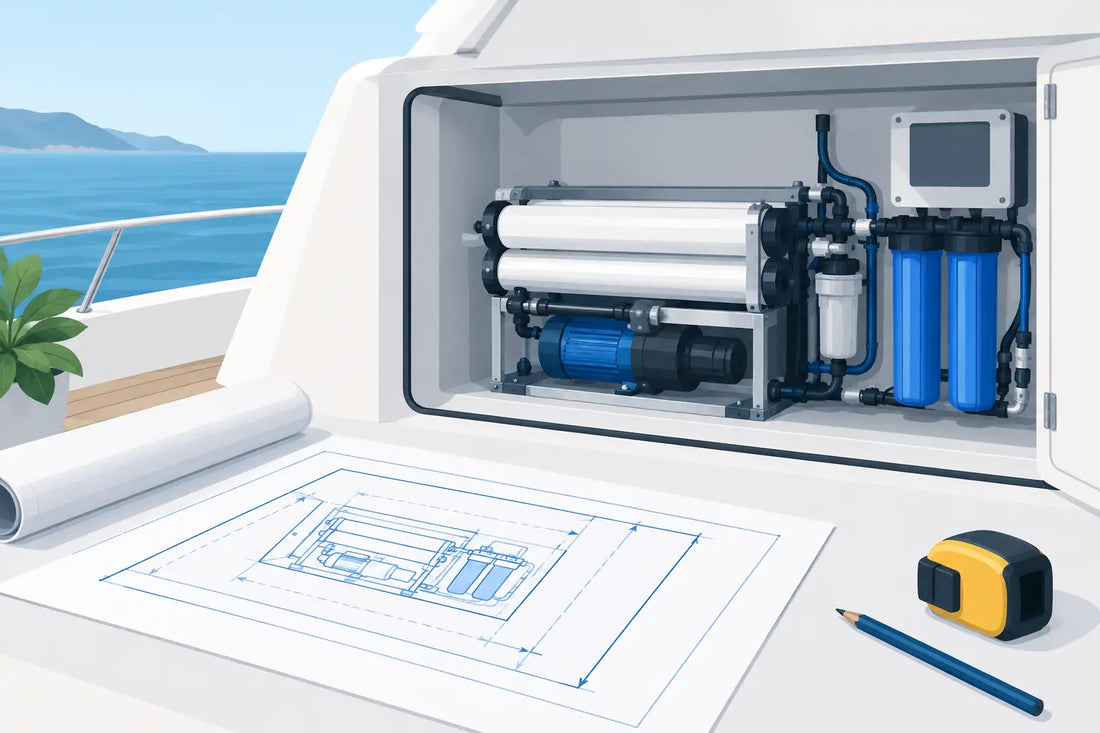

Watermaker Installation Space Planning Guide
Share
A watermaker can fit in a surprisingly small footprint. The mistake is assuming the footprint is the installation. A proper watermaker installation space planning guide starts with the room needed to reach filters, tighten fittings, inspect hoses, remove membranes, and work around the system when the boat is moving or the house is running on backup power.
On a cruising boat, the best compartment is rarely the emptiest one. It is the place that keeps raw-water plumbing short, protects components from heat and spray, and gives you enough working room to service the equipment without dismantling half the cabin. For an off-grid home, the same rule applies: choose a clean, accessible utility area instead of hiding the system behind stored gear or finished walls.
Start With Service Space, Not Equipment Size
Before measuring a locker, get the dimensions of every major component, not just the high-pressure pump. A complete reverse osmosis system may include a feed pump, prefilters, high-pressure pump, membrane vessel or vessels, control valves, gauges, plumbing runs, and product-water connections. Modular systems give you more freedom to split these components between nearby spaces, but they still need to function as one serviceable system.
Plan for clearance in front of filter housings. You need room to unscrew a canister, lower it out, and carry it away without spilling seawater into a bilge or onto electrical equipment. Leave enough side clearance to inspect hose clamps and fittings. If a membrane vessel must be removed for preservation or replacement, confirm there is a straight path to slide it out.
A component that can be installed but cannot be serviced is not truly installed. That is where many tight-space projects become expensive later.
Measure the working envelope
Use cardboard, painter's tape, or a simple mock-up to mark the actual equipment footprint. Then add the working envelope around it. Check four things before committing to a location:
- Space to open and remove prefilter housings
- A clear path to pull membrane vessels or access their end caps
- Hand and tool access for every hose clamp, valve, and fitting
- Room to see gauges and reach controls during normal operation
Choose a Location That Supports the Plumbing
Raw-water intake location matters. Long suction runs, unnecessary elbows, poor hose routing, and high points that trap air can make priming and troubleshooting harder than they need to be. Keep the feed side as short and direct as practical, using properly sized marine hose and fittings.
The system should be located where you can route three separate water paths cleanly: raw feed water in, brine discharge out, and fresh product water to a tank or dedicated outlet. Do not plan the watermaker around whichever hole is easiest to drill. Plan it around a logical serviceable route that protects hoses from chafe, heat, and accidental damage.
On a boat, avoid placing raw-water components where a minor leak can soak stored gear, bedding, or electrical panels. A low bilge location may seem convenient, but constant moisture, standing water, and difficult access work against long-term reliability. Install where the equipment stays dry, while still allowing sensible drain and discharge routing.
For an off-grid property, keep the system close enough to its source water and storage system to avoid excessive pumping losses. At the same time, do not put it in a freezing, dusty, or unventilated shed unless the space is designed for those conditions. A watermaker is durable equipment, but it does not benefit from neglect.
Plan for Power Before Mounting Anything
Space planning must match the system's power source. An AC-powered watermaker needs appropriate generator, inverter, or shore-power capacity and a protected electrical route. An engine-driven system needs room near the engine for mounting, belt alignment, guarding, and service. Those are very different installation problems.
For engine-driven systems, do not focus only on finding a flat mounting surface. Check that the drive arrangement can be aligned correctly and that you can inspect belts, fasteners, and pump connections after installation. Engine rooms also bring heat, vibration, fuel lines, and limited working space. A compact layout is useful, but cramped service access is not.
For AC systems, locate electrical connections away from possible leaks and allow for clean wire routing, proper circuit protection, and ventilation around components that produce heat. Keep power requirements realistic. A watermaker that runs well from a generator may not be a good match for a modest inverter bank, especially when other loads are running.
If your boat or property has limited available power, that may change the right system configuration more than the available physical space does. It is worth sorting this out before ordering equipment.
Ventilation, Heat, and Vibration Are Part of the Space Plan
A closed locker can protect equipment, but it can also trap heat and moisture. Pumps, motors, and drive systems need an environment that stays reasonably dry and can shed heat. Avoid compartments next to exhaust components, hot engine surfaces, or damp chain lockers whenever possible.
Vibration deserves equal attention. A pump mounted to a thin bulkhead or unsupported panel can transmit noise through the whole boat. Use a strong mounting surface and appropriate vibration isolation where it makes sense, but do not make components so soft-mounted that plumbing connections carry the load. Hoses need proper support, gentle bends, and protection anywhere they pass through a bulkhead.
Think through what happens in rough water as well. Stored gear shifts. Doors flex. Loose hoses chafe. A good installation leaves hoses secured and components protected from anything that can move into them.
Keep Filters and Controls Where You Can Actually Use Them
Prefilters are the part of the system you will see most often. They need a location where you can inspect water quality, spot a dirty element, shut off water, and change filters without contortion. Mounting filters high enough to see is helpful, but leave enough room below them to remove the housings.
Gauges and control valves should also be readable during operation. You should not need a flashlight, mirror, or another person holding a hatch open just to verify pressure. This is especially true for owners making water offshore, where a quick visual check is part of normal watchkeeping.
A simple, open layout usually beats a polished-looking hidden layout. The goal is equipment you can understand at a glance and maintain with normal tools.
Use Modular Layouts to Solve Real Constraints
There is no single best layout for every vessel. A catamaran may have generous volume but long plumbing runs between compartments. A monohull may have a narrow machinery space with a short path to the seawater intake. A compact off-grid cabin may need the system arranged along a utility-room wall beside tanks and filtration.
That is where modular installation makes sense. Separating the pump, filters, and membrane vessels can turn several awkward small spaces into a practical system. The trade-off is more planning. Every added hose run needs support, access, and leak inspection. More distance can also mean more pressure loss or more complicated routing if it is not designed carefully.
Sun Pure Water Makers can help match component placement to the available room, power source, and production goal. Bring actual measurements, photos, and a basic sketch of nearby intakes, tanks, power equipment, and access panels. Good information early prevents a lot of rework later.
Leave Room for the Jobs You Will Do Later
Do not design only for the first day of operation. Plan for filter changes, seasonal storage, membrane preservation, troubleshooting, hose replacement, and winterization if your location requires it. Keep shutoff valves accessible. Label lines before closing panels. Leave a little slack where future service may require moving a component, while keeping hoses supported so slack does not become chafe.
It also helps to reserve a small nearby space for spare filters, service tools, test equipment, and preservation supplies. These items do not need to live next to the system, but they should not be buried in a separate locker under cruising gear.
The best watermaker installation is not the one that disappears behind a panel. It is the one that keeps producing fresh water because you can inspect it, maintain it, and fix it yourself wherever you happen to be.
